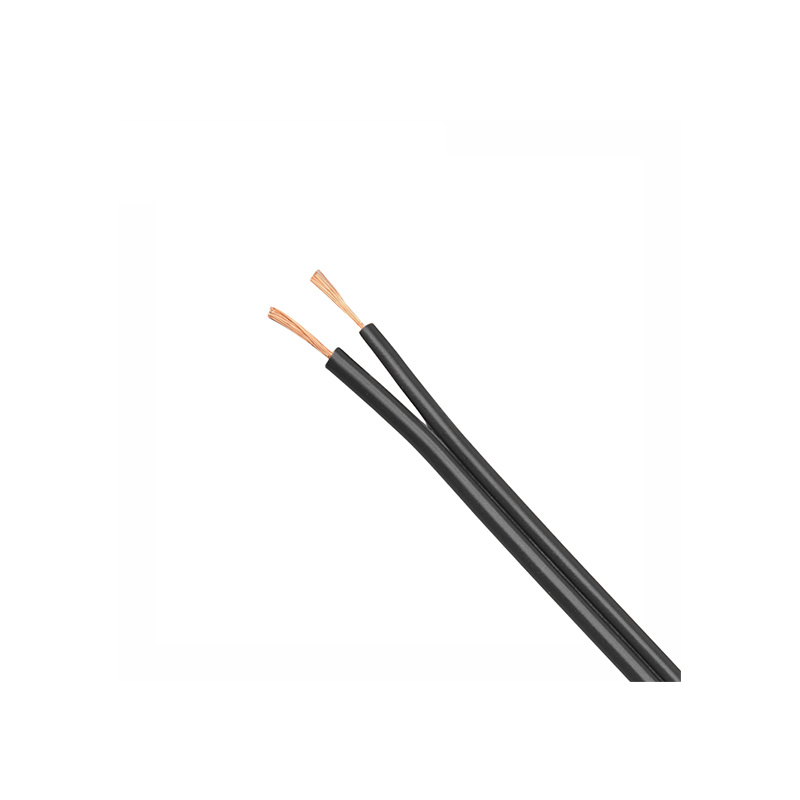

UL-SPT-3 PVC Electric Cable
PRODUCT DESCRIPTION:
1) Rated temperature: 60ºC, 105ºC
2) Rated voltage: 300V
3) Reference standard: UL62, UL1581, CSA C22. 2No. 49
4) Solid or stranded ,tinned or bare copper conductor 18-12AWG
5) PVC insulation, comply with ROHS environmental standard
6) PVC jacket, comply with ROHS environmental standard.
7) Passes UL,VW- 1, CSA FT2 and JQA- F-Mark flame test
8) Uniform insulation thickness to ensure easy stripping and cutting
9) For general purpose use for power supply cord
MARKING:
(UL) E176939 SPT-3 VW-1 105ºC 300V ()AWG XINYA CSA LL109915 TYPE SPT-3 FT2 105ºC 300V ()mm2 ( ()AWG)- F-LM
(UL) E176939 SPT-3 VW-1 105ºC 300V ()AWG X 3C GREEN CONDUCTOR FOR GROUNDING ONLY CSA LL109915 TYPE
SPT-3 FT2 105ºC 300V ()mm 2 ( ()AWG) × 3C XINYA- F- LM
CABLE CONSTRUCTION:
| Conductor | Conductor | Conductor | Conductor | Grounding wire | Insulation | Insulation | Max. Cond. Resistance (Ω/km,20ºC,DC) |
| AWG | Construction(No./mm) | DIA.(mm) | (No.) | O.D.(mm) | Insulation Thickness(mm) | O.D.(mm) | |
| 18 | 41/0.16 | 1.81 | 2 | – | 1.52 | 4.30 x 8.60 | 22.4 |
| 18 | 41/0.16 | 1.81 | 3 | 2 | 1.52 | 4.30 x 11.00 | 22.4 |
| 16 | 26/0.254 | 1.49 | 2 | – | 1.52 | 4.60 x 9.20 | 14.1 |
| 16 | 26/0.254 | 1.49 | 3 | 2.4 | 1.52 | 4.60 x 12.30 | 14.1 |
| 14 | 41/0.254 | 1.88 | 2 | – | 2.03 | 6.00 x 12.00 | 8.88 |
| 12 | 65/0.254 | 2.36 | 2 | – | 2.41 | 7.20 x 14.40 | 5.58 |
Note:
18AWG presents 0.824mm2, 16AWG presents 1.31mm2,14AWG presents 2.08mm2, 12AWG presents 3.31mm2.
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
