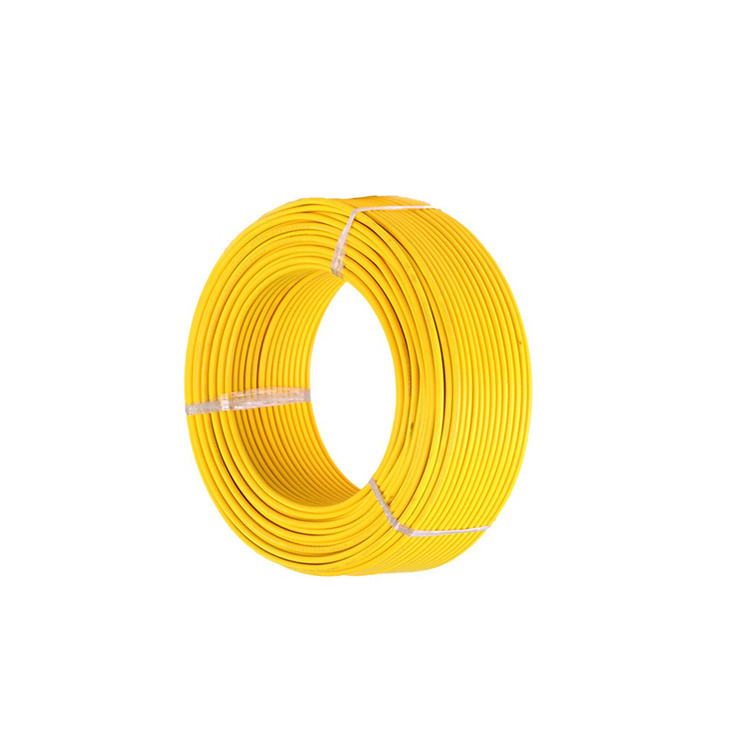

UL-SJTW PVC Electric Cable
Application:
Portable cordage for small appliances and equipment not exceeding 300 volts in wet or dry locations
Cable Construction:
| Conductor | Stranded Bare Copper conuctors |
| Insulation | Polyvinylchloride (PVC) |
| Colour Code | 2core – Black, White |
| Colour Code | 3core – Black, White, Green |
| Colour Code | 4core – Black, White, Red, Green |
| Outer Jacket | Polyvinylchloride (PVC) Black |
| Temperature Range | -20˚C up to +60˚C (also available in 105˚C) |
| Certification | CSA Certified under file LL39753 |
| No. Of | Conductor | Conductor | Current Rating* | Radial Thickness | Nom. O.D. | Total Weight |
| Conductors | Size (AWG) | Stranding | Current Rating* | Insulation (mm) | (mm) | (kg/km) |
| 2 | 18 | 16/30 | 10 A | 0.76 | 7.37 | 73 |
| 2 | 16 | 26/30 | 13 A | 0.76 | 8.13 | 99 |
| 3 | 18 | 16/30 | 10 A | 0.76 | 8.13 | 102 |
| 3 | 16 | 26/30 | 13 A | 0.76 | 8.64 | 125 |
| 3 | 14 | 41/30 | 18 A | 0.76 | 9.27 | 165 |
| 3 | 12 | 65/30 | 25 A | 0.76 | 10.92 | 248 |
| 4 | 16 | 26/30 | 13 A | 0.76 | 9.5 | 162 |
| 4 | 14 | 41/30 | 18 A | 0.76 | 10.26 | 215 |
| 4 | 12 | 65/30 | 25 A | 0.76 | 11.95 | 325 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
