cable wire manufacture

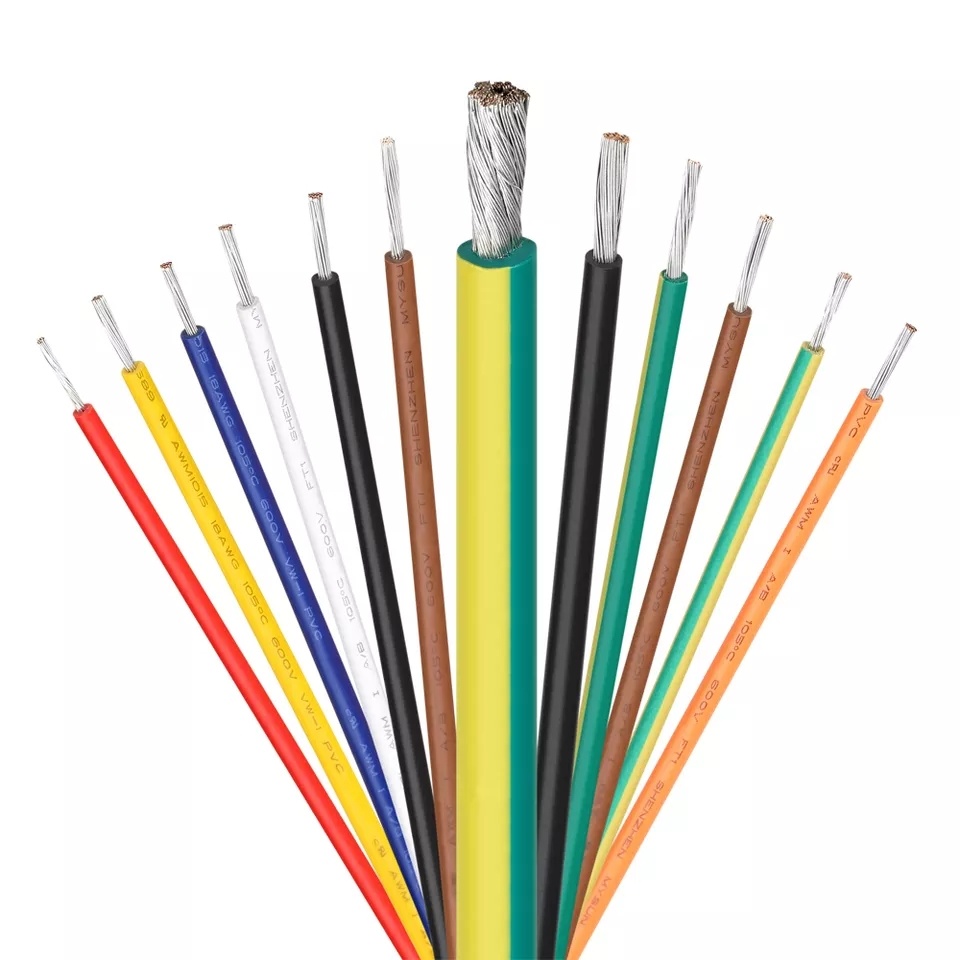

UL single wire-UL 1015
Application:
-FOR general purpose on internal wiring of electronic and electrical equipment
Product Description:
-Rated temperature 105℃
-Rated voltage: 600 volts.
-Reference Standard: UL 758 & CSA C22.2 NO. 210, JQA – F – mark.
-Solid or stranded tinned or bare copper conductor.
-COLOR-coded PVC insulation (ROHS Free)
-Uniform thickness of wire to ensure easy stripping and cutting.
-Passes VW-1, FTI & – F -flame test
UL single wire-UL 1015
| Conductor | Conductor | Insulation Thickness | Overall Diameter (Approx) | Standard Put-Up | Standard Put-Up | Conductor Resistance at 20℃ (Maximum) |
| AWG | No./mm. | mm | mm | Ft/coil | M/coil | Ohm/km |
| 26 | 7/0.160 | 0.76 | 2.05 | 2000 | 610 | 150 |
| 24 | 11/0.160 | 0.76 | 2.20 | 2000 | 610 | 94.2 |
| 22 | 17/0.160 | 0.76 | 2.40 | 2000 | 610 | 59.4 |
| 20 | 21/0.180 | 0.76 | 2.55 | 2000 | 610 | 36.7 |
| 18 | 34/0.180 | 0.76 | 2.80 | 2000 | 610 | 23.2 |
| 16 | 26/0.254 | 0.76 | 3.10 | 2000 | 610 | 14.6 |
| 14 | 41/0.254 | 0.76 | 3.50 | 1000 | 305 | 8.96 |
| 12 | 65/0.254 | 0.76 | 3.90 | 1000 | 305 | 5.64 |
| 10 | 105/0.254 | 0.76 | 5.10 | 1000 | 305 | 3.54 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
