cable wire manufacture

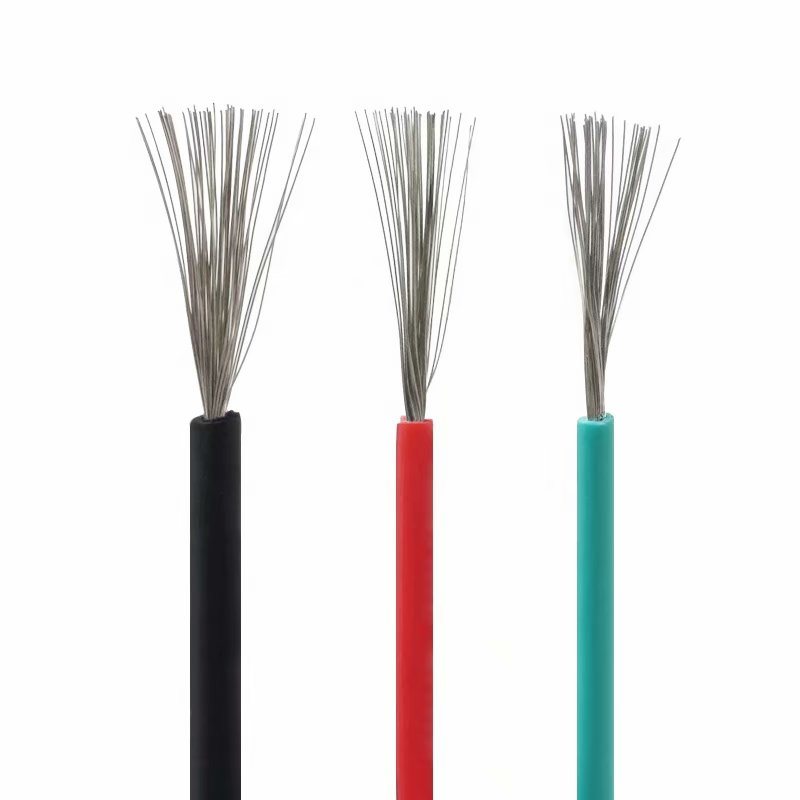

UL single wire-UL 1007
1, Rated temperature:80ºC
2, Rated voltage:300v
3, according to:UL subject 758,UL1581,CSA C22.2
4, Solid or Stranded,tinned or bare copper conductor 30-16AWG
5, PVC insulation
6, Passes UL VW-1 & CSA FT1 Vertical flame test
7, uniform insulation thickness of wire to ensure easy stripping and cutting
8, Environmental testing pass ROHS
9, Internal wiring of appliances or electronic equipment
Rating: 80 deg C, 300 Vac, Horizontal flame. Optional – 60 deg Cor 80 deg C Oil.
Conductor: 32 AWG – 16 AWG, SOLID or Stranded.
Insulation: Extruded PVC, 15 mils minimum average thickness, 13 mils minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
Marking General
Use Internal wiring of appliances. Tags may indicate the folowing: 600 V peak – For Electronic Use Only.
UL single wire-UL 1007
| Specification | Conductor Construction | Insulation Thickness | Reference Diameter | Conductor Resistance at 20℃ (Maximum) |
| AWG | n/mm | mm | mm | Solid | Stranded |
| 26 | 7/0.160 | 0.38 | 1.25±0.05 | 142.79 | 148.94 |
| 24 | 11/0.160 | 0.38 | 1.45±0.05 | 89.39 | 93.25 |
| 22 | 17/0.160 | 0.38 | 1.55±0.05 | 54.3 | 55.0 |
| 20 | 26/0.160 | 0.38 | 1.8±0.05 | 33.9 | 34.6 |
| 18 | 41/0.160 | 0.38 | 2.2±0.05 | 21.4 | 21.8 |
| 16 | 26/0.160 | 0.38 | 2.4±0.05 | 13.5 | 13.7 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
