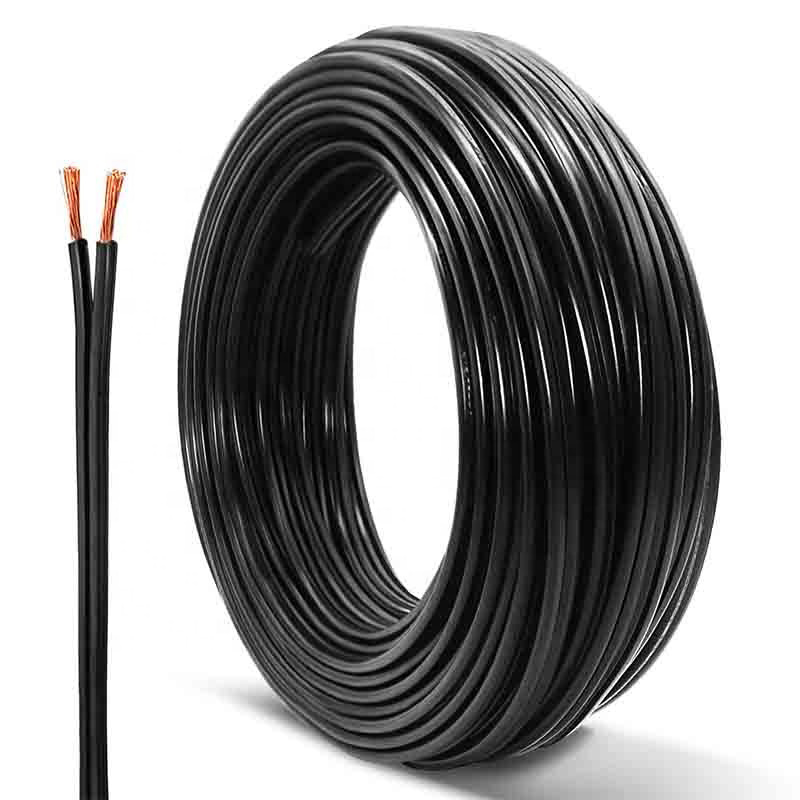

UL-NISPT-2 PVC Electric Cable
PRODUCT DESCRIPTION:
1) Rated temperature: 60 C, 105 C
2) Rated voltage: 300V
3) Reference standard: UL62, UL1581, CSA C22. 2No. 49
4) Solid or stranded ,tinned or bare copper conductor 18-16AWG
5) PVC insulation, comply with ROHS environmental standard
6) PVC jacket, comply with ROHS environmental standard.
7) Passes UL,VW- 1, CSA FT2 and JQA- F-Mark flame test
8) Uniform insulation thickness to ensure easy stripping and cutting
9) For general purpose use for power supply cord
MARKING:
(UL) E176939 NISPT-2 VW-1 105 C 300V ()AWG XINYA CSA LL109915 TYPE SPT-2 FT2 105 C 300V ()mm 2 ( ()AWG)- F- LM
CABLE CONSTRUCTION:
| Conductor | Conductor | Conductor | Conductor | Insulation | Insulation | Jacket | Jacket | Max. Cond. Resistance |
| Cross section(mm²) | Construction(No./mm) | DIA.(mm) | (No.) | Insulation Thickness(mm) | O.D.(mm) | Jacket Thickness(mm) | O.D.(mm) | (Ω/km,20ºC,DC) |
| 18 | 41/0.16 | 1.18 | 2 | 0.76 | 2.75 | 0.38 | 3.75 x 7.20 | 22.4 |
| 18 | 41/0.16 | 1.18 | 3 | 0.76 | 2.75 | 0.38 | 3.75 x 10.20 | 22.4 |
| 16 | 65/0.16 | 1.49 | 2 | 0.76 | 3.05 | 0.38 | 4.00 x 7.30 | 14.1 |
| 16 | 65/0.16 | 1.49 | 3 | 0.76 | 3.05 | 0.38 | 4.00 x 10.90 | 14.1 |
Note: 18AWG presents 0.824mm2,16 AWG presents 1.31mm2,
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
