cable wire manufacture

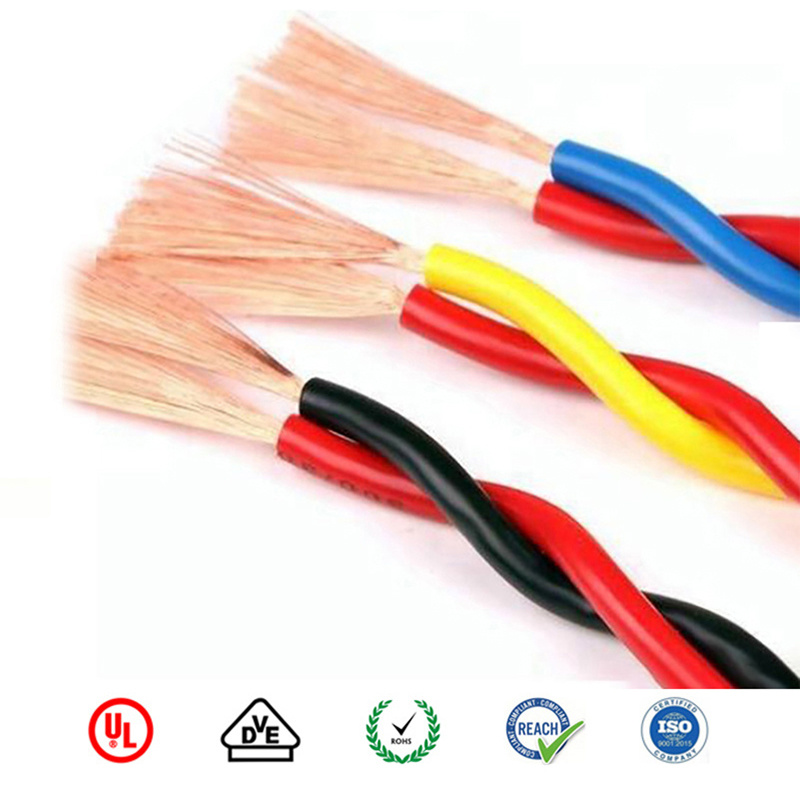

UL-CXTW PVC Electric Cable
1.PRODUCT DESCRIPTION:
Rated temperature: 105ºC
Rated voltage: 300V
Reference standard: UL62,UL1581,CSA C22.2No.49
Stranded bare copper conductor 22-18AWG
PVC insulation, comply with ROHS environmental standard Passes UL VW-1, and JQA-F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting For general purpose use for power supply cord
2,MARKING:
(UL) CXTW E176939 VW-1 105ºC 300V ()AWG XINYA -F-LM
3,CABLE CONSTRUCTION:
| Conductor | Conductor | Conductor | Conductor | Insulation | Insulation | Max. Cond. Resistance |
| Cross section(mm²) | Construction(No./mm) | DIA.(mm) | (No.) | Insulation Thickness(mm) | O.D.(mm) | (Ω/km,20ºC,DC) |
| 22 | 17/0.16 | 0.76 | 1 | 0.76 | 2.35 | 56.8 |
| 22 | 17/0.16 | 0.76 | 2 | 0.76 | Twist | 56.8 |
| 20 | 26/0.16 | 0.94 | 1 | 0.76 | 2.55 | 35.7 |
| 20 | 26/0.16 | 0.94 | 2 | 0.76 | Twist | 35.7 |
| 18 | 41/0.16 | 1.18 | 1 | 0.76 | 2.8 | 22.4 |
| 18 | 41/0.16 | 1.18 | 2 | 0.76 | Twist | 22.4 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
