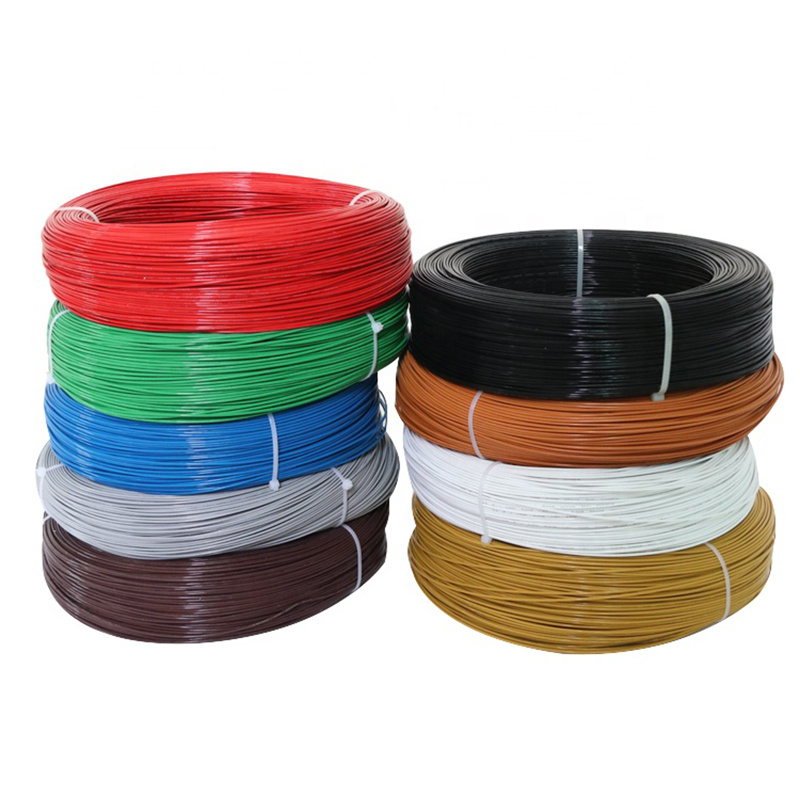

TXL Automotive Cable
APPLICATION AND DESCRIPTION
This XLPE insulated single-core cable is used in automotive applications where higher heat resistance, small diameter and minimal weight is required.
CONSTRUCTION
Conductor : Soft-annealed copper according to ASTM B
Insulation : Polyethylene crosslinked (XLPE)
Standard Compliance : SAE J1128
TECHNICAL PARAMETERS
Operating temperature : –40°C to +105°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Insulation | Cable | Cable | |
| Size | Nominal Cross-Section | No. and Dia. of Wires | Diameter max. | Thickness Wall min. | Thickness Wall nom. | Overall Diameter max. | Weight Approx. |
| AWG | mm² | No./mm | mm | mm | mm | mm | kg/km |
| 22 | 1 x 0.35 | 7/0.25 | 0.76 | 0.28 | 0.4 | 1.7 | 6 |
| 20 | 1 x 0.50 | 7/0.32 | 0.97 | 0.28 | 0.4 | 1.9 | 8 |
| 20 | 1 x 0.50 | 19/0.19 | 0.95 | 0.28 | 0.4 | 1.9 | 8 |
| 18 | 1 x 0.80 | 16/0.25 | 1.17 | 0.28 | 0.4 | 2.2 | 11 |
| 18 | 1 x 0.80 | 19/0.23 | 1.17 | 0.28 | 0.4 | 2.2 | 11 |
| 16 | 1 x 1.00 | 19/0.28 | 1.45 | 0.28 | 0.4 | 2.4 | 15 |
| 14 | 1 x 2.00 | 19/0.36 | 1.8 | 0.28 | 0.4 | 2.7 | 22 |
| 12 | 1 x 3.00 | 19/0.45 | 2.29 | 0.32 | 0.46 | 3.3 | 34 |
| 10 | 1 x 5.00 | 19/0.57 | 2.87 | 0.35 | 0.5 | 4 | 53 |
| 10 | 1 x 5.00 | 100/0.26 | 3 | 0.35 | 0.45 | 3.9 | 53 |
| 8* | 1 x 8.00 | 49/0.46 | 4.06 | 0.39 | 0.55 | 4.9 | 85 |
* For SAE J1128 and UTMS applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
