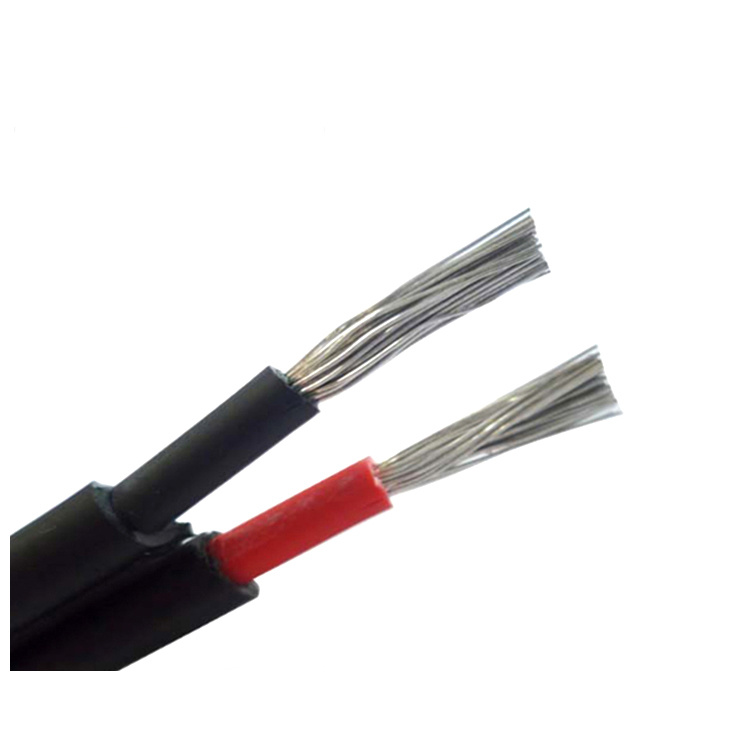

Photovoltaic Power Cable TUV Two Core PV Cable
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station
Construction
Conductor:Tinned copper,according to the VDE0295/IEC 60228,Class 5
Insulation:Polyolefin copolymer electron-beam cross-linked
Outer sheath:Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer’s request
Technical Specification
Nominal Voltage:Uo/U=600/1000VAC,1000/1800VDC
Test Voltage:6500V,50HZ 5Min
Temperature Rating:
45℃ upto +125℃
-40℉ upto +257℉
Ambient temperature:25 years (TUV)
-40℃ upto +90℃
-40℉ upto +194℉
Max.Short circuit temperature: 280℃ +536℉
Bending Radius:
Fixed installation>4X
Occasionally moved>5X
Material Properties /Standards
Fire-resistance performance:IEC 60332-1
Smoke emission:IEC 61034;EN 50268-2
Low fire load:DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards:
UNE 211 23;UNE 20,460-5-52,UTE C 32-502
Dimensions,Parameter
| Construstion | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25±0.008 | 0.7 | 0.8 | 4.8×10.1 | 13.7 | 30 | 72 |
| 2×2.5 | 49/0.25±0.008 | 0.7 | 0.8 | 5.4×11.8 | 8.21 | 41 | 94 |
| 2×4.0 | 56/0.30±0.008 | 0.7 | 0.8 | 6.0×12.8 | 5.09 | 55 | 142 |
| 2×6.0 | 84/0.30±0.008 | 0.8 | 0.9 | 7.1×15.5 | 3.39 | 70 | 200 |
| 2×10.0 | 80/0.40±0.008 | 0.9 | 1.1 | 9.0×19.2 | 1.95 | 98 | 290 |
| 2×16.0 | 128/0.40±0.008 | 1.1 | 1.1 | 10.2×21.7 | 1.24 | 132 | 430 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
