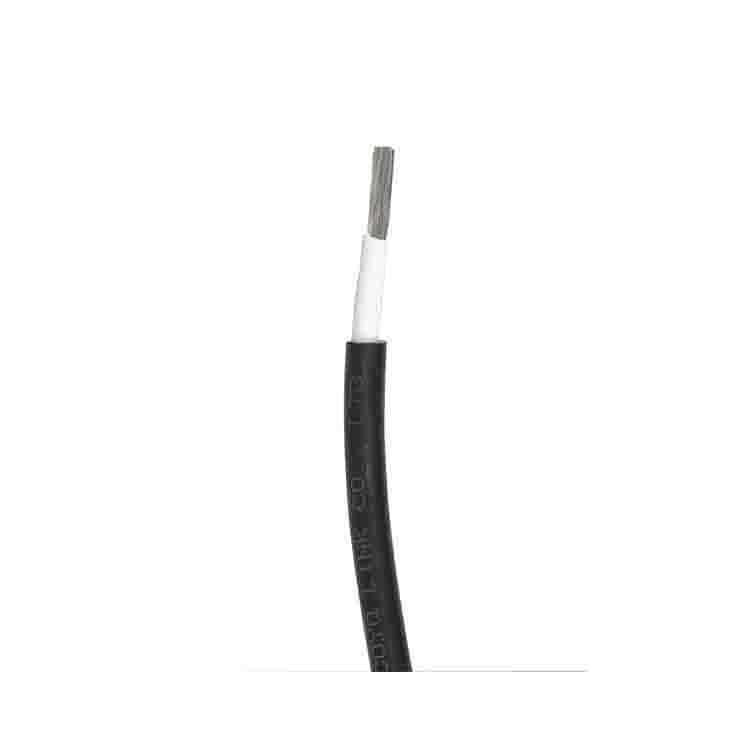

TUV Single Core Solar Cable
TUV Single Core Solar Cable - PV solar cable - 1" title="TUV Single Core Solar Cable - PV solar cable - 1">Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station
Construction
Conductor:Tinned copper, according to the VDE0295/IEC 60228,Class 5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer sheath:Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer’s request
Technical Specification
Nominal Voltage: Uo/U=600/1000VAC,1000/1800VDC
Test Voltage :6500V,50HZ,5Min.
Temperature Rating:
45℃ upto +125℃
-40℉ upto +257℉
Ambient temperature:25 years (TUV)
-40℃ upto +90℃
-40℉ upto +194℉
Max.Short circuit temperature: 280℃ +536℉
Bending Radius：
Fixed installation>4X
Occasionally moved>5X
Material Properties /Standards
Fire resistance performance: IEC 60332-1
Smoke emission: IEC 61034 ;EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards：
UNE 211 23;UNE 20.460-5-52.UTE C 32-502
Dimensions,Parameter
| Construstion | Conductor Construction | Conductor | Outer | Resistance Max. | Current Carring Capacity |
| n×mm² | n/m | mm | mm | Ω/Km | A |
| 1×1.5 | 30/0.25±0.008 | 1.54 | 4.80 | 13.70 | 30 |
| 1×2.5 | 49/0.25±0.008 | 1.98 | 5.40 | 8.21 | 41 |
| 1×4.0 | 56/0.30±0.008 | 2.53 | 6.10 | 5.09 | 55 |
| 1×6.0 | 84/0.30±0.008 | 3.10 | 7.10 | 3.39 | 70 |
| 1×10.0 | 80/0.40±0.008 | 4.34 | 9.00 | 1.95 | 98 |
| 1×16.0 | 128/0.40±0.008 | 5.46 | 10.20 | 1.24 | 132 |
| 1×25.0 | 361/0.30±0.008 | 6.95 | 12.00 | 0.795 | 176 |
| 1×35.0 | 525/0.30±0.008 | 8.74 | 13.80 | 0.565 | 218 |
| 1×50.0 | 720/0.30±0.008 | 9.20 | 14.80 | 0.393 | 280 |
| 1×70.0 | 988/0.30±0.008 | 11.00 | 16.90 | 0.277 | 350 |
| 1×95.0 | 1349/0.30±0.008 | 12.50 | 18.70 | 0.21 | 410 |
| 1×120.0 | 1691/0.30±0.008 | 14.20 | 20.70 | 0.164 | 480 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
