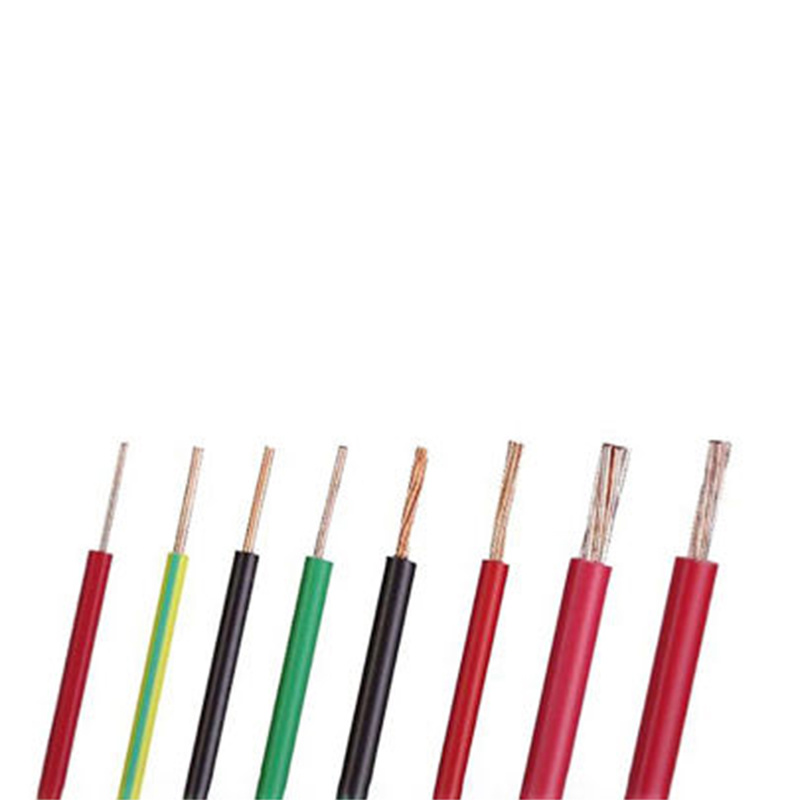

SXL Automotive Cable
APPLICATION AND DESCRIPTION
This XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.
CONSTRUCTION
Conductor: Soft-annealed copper according to ASTM B3
Insulation: Polyethylene crosslinked (XLPE)
Standard Compliance: SAE J1128
TECHNICAL PARAMETERS
Operating temperature:–40 °C to +125 °C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Insulation | Cable | Cable | |
| Size | Nominal cross- section | No. and Dia. of Wires | Diameter max. | Thickness Wall min. | Thickness Wall nom. | Overall Diameter max. | Weight Approx. |
| AWG | mm2 | No./mm | mm | mm | mm | mm | kg/km |
| 20 | 1 x 0.50 | 7\0.32 | 0.97 | 0.52 | 0.74 | 2.8 | 11 |
| 18 | 1 x 0.80 | 19\0.23 | 1.17 | 0.53 | 0.76 | 3 | 15 |
| 16 | 1 x 1.00 | 19\0.28 | 1.45 | 0.57 | 0.81 | 3.4 | 20 |
| 14 | 1 x 2.00 | 19\0.36 | 1.8 | 0.62 | 0.89 | 3.9 | 29 |
| 12 | 1 x 3.00 | 19\0.45 | 2.29 | 0.66 | 0.94 | 4.6 | 43 |
| 10 | 1 x 5.00 | 19\0.57 | 2.87 | 0.73 | 1.04 | 5.3 | 64 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
