cable wire manufacture

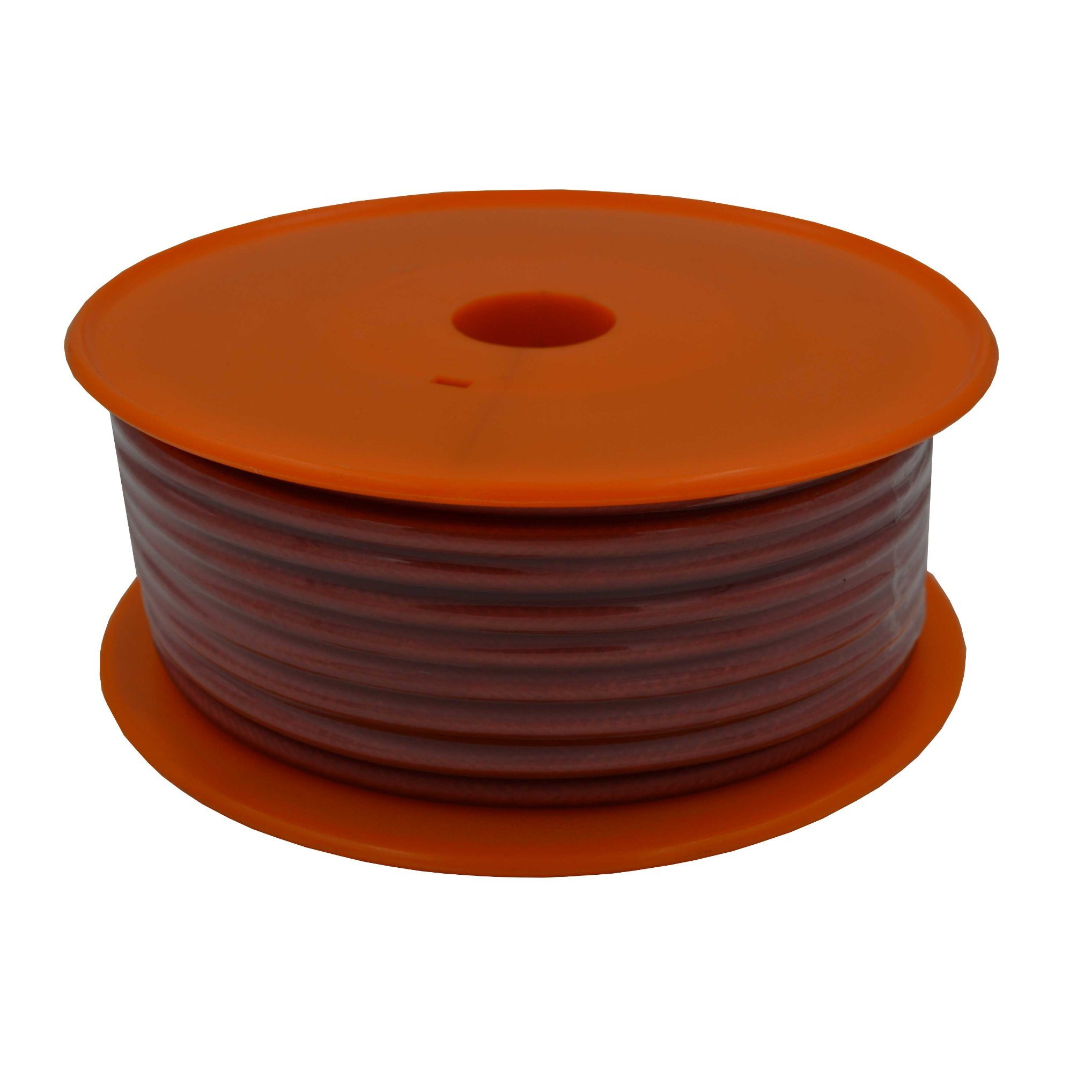

Spiral Shield Microphone Cable
Soft structure PVC insulation al-foil spiral shield PVC jacket
Explanation
1、The cable has stranded 4N oxygen-free coper as the core conductor, which resists oxidation, ensures high transmission rate and low attenuation. Please refer to the previous page for the arrangement of the four cores and its advantages.
2、Such cables are used for the transmission of low frequency signals, when they are usually called microphone cables. Spiral shield is even softer than braid shield. The elastic protective jackets are made of polyvinyl chloride in bright colors which are soft, distortion endure, and hard to go brittle(brittle temperature:-49℃).
3、Please refer to the previous page for the arrangement of the four cores and its advantages.
4、This cable is the standard fom of microphone cable.
| Picture | Section | Specification n/Φ mm | Each Crossec Area Φ mm2 | Conductor’s Max DC Resistance at 20℃ Ω/km | Minimum Insulating Resistance at 70℃ MΩ/km | Shield Density % | Nom.O.D Φ mm |
 |  | 2×16/0.10 | 0.12 | 158 | 0.016 | >85 | 5.0 |
| | | 2×25/0.10 | 0.20 | 92.3 | 0.013 | >85 | 5.5 |
| | | 2×16/0.15 | 0.30 | 69.2 | 0.014 | >85 | 6.0 |
| | | 2×28/0.15 | 0.50 | 39.0 | 0.012 | >85 | 6.5 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
