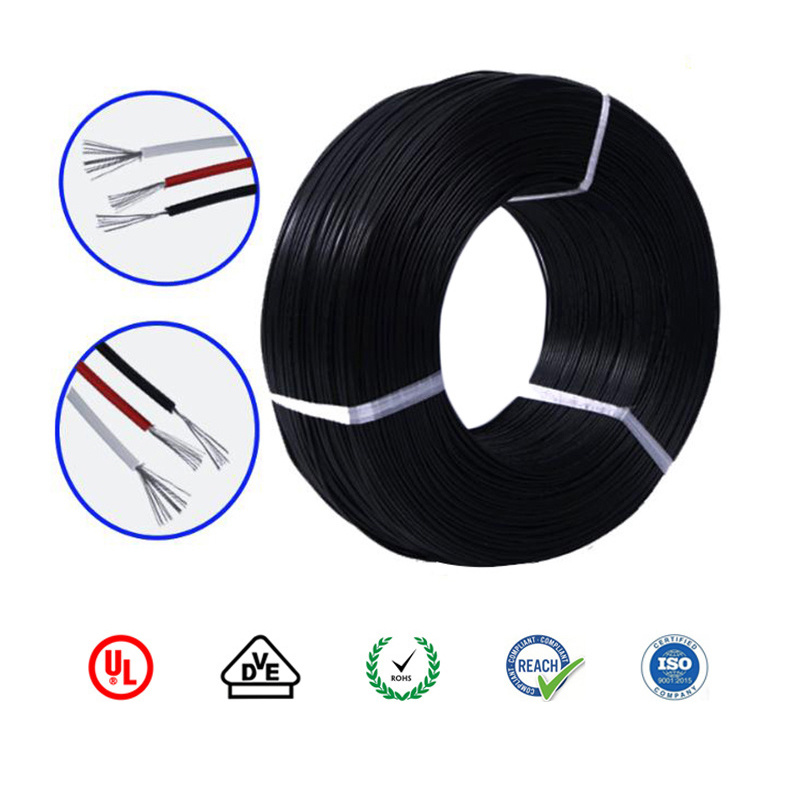

HDT Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.
CONSTRUCTION
Conductor: Soft-annealed copper according to ASTM B3
Insulation: PVC
Standard Compliance: SAE J1128
TECHNICAL PARAMETERS
Operating temperature:–40 °C to +85 °C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | |
| Size | Nominal cross- section | No. and Dia. of Wires | Diameter max. | Thickness Wall nom. | Overall Diameter max. | Weight Approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 20 | 1 x 0.50 | 7/0.31 | 1 | 0.91 | 2.8 | 14 |
| 18 | 1 x 0.80 | 16/0.26 | 1.5 | 0.94 | 3 | 20 |
| 16 | 1 x 1.00 | 19/0.29 | 1.5 | 1.02 | 3.5 | 25 |
| 14 | 1 x 2.00 | 19/0.36 | 1.8 | 1.04 | 3.9 | 33 |
| 12 | 1 x 3.00 | 19/0.45 | 2.3 | 1.17 | 4.6 | 49 |
| 10 | 1 x 5.00 | 19/0.57 | 3 | 1.17 | 5.3 | 71 |
| 8 | 1 x 8.00 | 49/0.45 | 3.7 | 1.4 | 6.5 | 98 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
