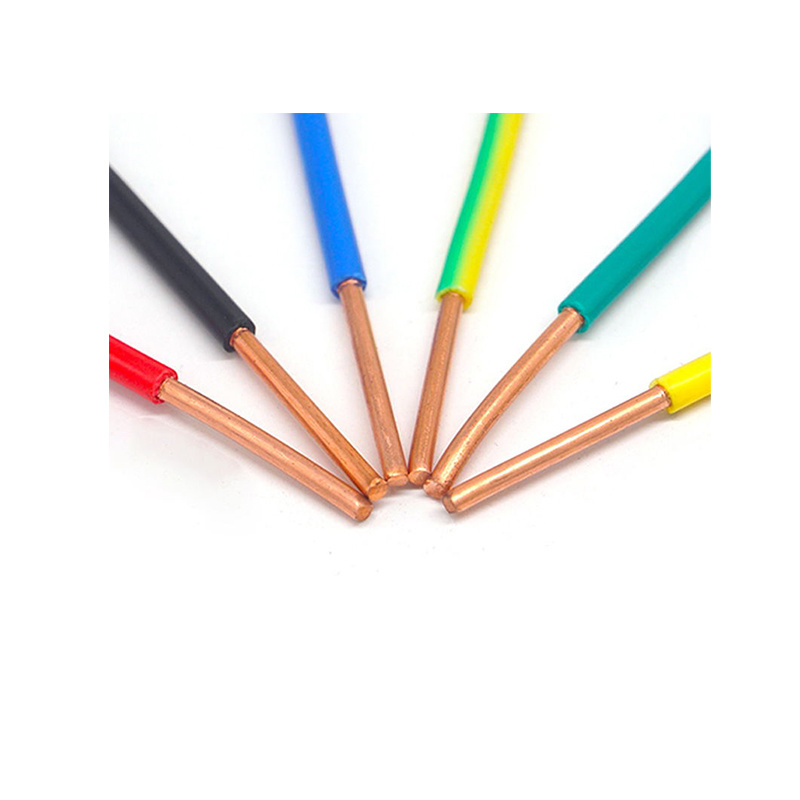

H07V-U PVC Electric Cable
APPLICATION AND DESCRIPTION
H07 V-U/(H)07 V-U
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.
These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.
STANDARD AND APPROVAL
CEI 20-20/3, CEI 20-35, CEI 20-52, HD 21.3 S3, IEC60332
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
CABLE CONSTRUCTION
Technical Characteristics
| Solid bare copper single wire |
| Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| H07V-U (16 AWG and Larger) |
| Working voltage | 450/750v |
| Test voltage | 2500V |
| Flexing bending radius | 15 x O |
| Static bending radius | 15 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +90oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
CABLE PARAMETER
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 20 | 1 x 0.5 | 0.6 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 0.6 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 0.6 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 0.7 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 0.8 | 3.5 | 24 | 33 |
| 12 | 1 x 4 | 0.8 | 3.9 | 38 | 49 |
| 10 | 1 x 6 | 0.8 | 4.5 | 58 | 69 |
| 8 | 1 x 10 | 1 | 5.7 | 96 | 115 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
