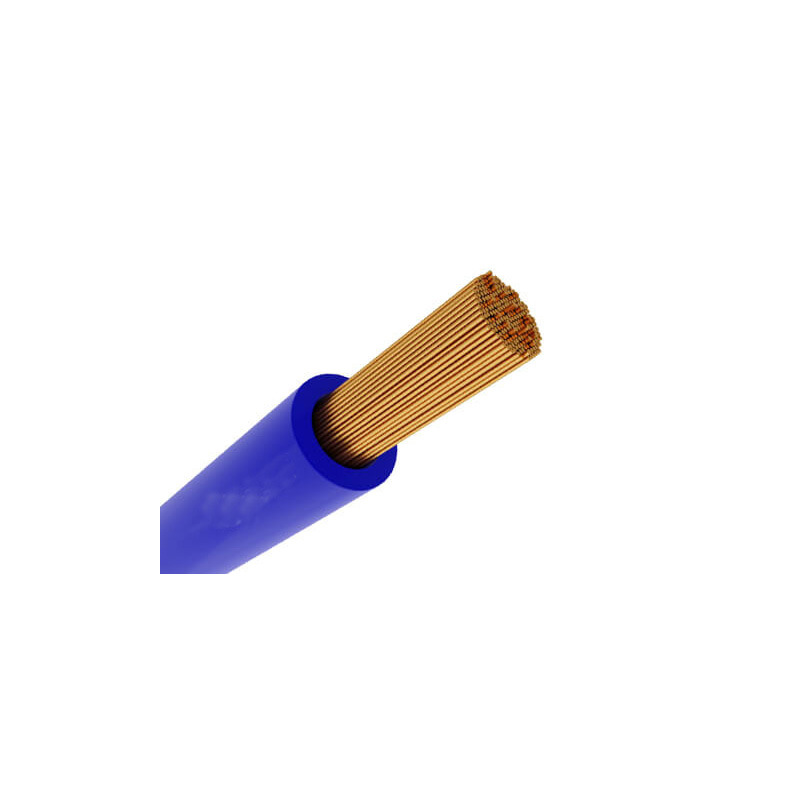

PVC Electric Cable: H05V2-K
APPLICATION AND DESCRIPTION:
These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.
STANDARD AND APPROVAL:
1) HD 21.7 S2
2) CEI 20-20, CEI20-52
3) VDE-0281 Part-7
4) CE Low Voltage Directive 73/23/EEC and 93/68/EEC
5) ROHS compliant
CABLE CONSTRUCTION:
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383
Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7
Cores to VDE-0293 colors
PVC Electric Cable: H05V2-K(20, 18 & 17 AWG)
TECHNICAL CHARACTERISTICS:
| WORKING VOLTAGE | 300/500v |
| TEST VOLTAGE | 2000 volts |
| FLEXING BENDING RADIUS | 10-15 x Ø |
| STATIC BENDING RADIUS | 10-15 x Ø |
| FLEXING TEMPERATURE | +5 ºC to +90 ºC |
| STATIC TEMPERATURE | -10 ºC to +105 ºC |
| FLAME RETARDANT | IEC 60332.1 |
| INSULATION RESISTANCE | 20 MΩ x km |
CABLE PARAMETER:H05V2-K
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
| # X MM² | MM | MM | KG/KM | KG/KM | |
| 20(16/32) | 1 x 0.5 | 0.6 | 2.5 | 4.8 | 8.7 |
| 18(24/32) | 1 x 0.75 | 0.6 | 2.7 | 7.2 | 11.9 |
| 17(32/32) | 1 x 1 | 0.6 | 2.8 | 9.6 | 14 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
