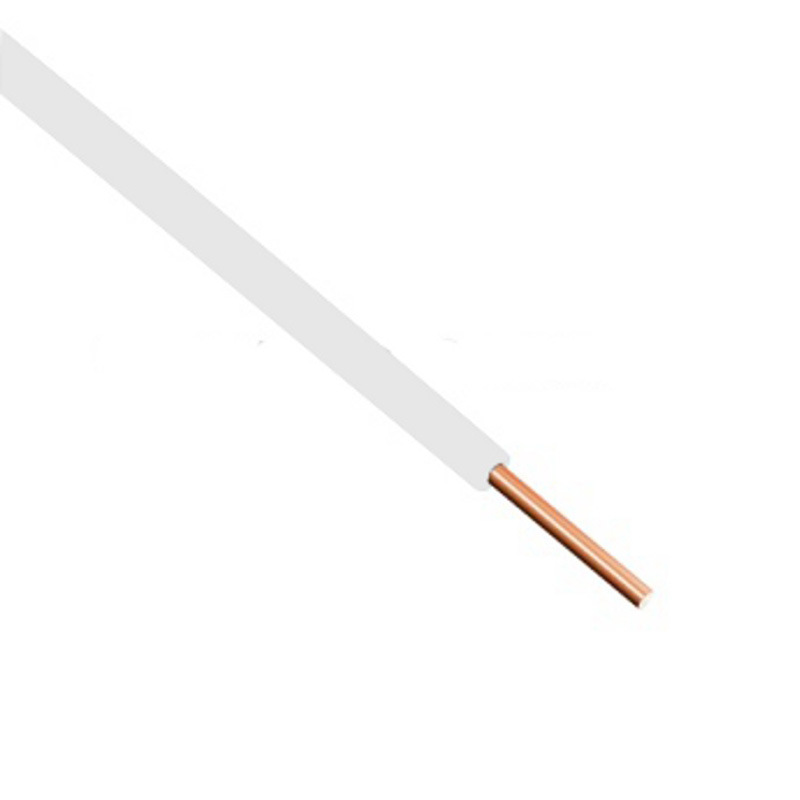

H05V-U PVC Electric Cable
APPLICATION AND DESCRIPTION
H05 V-U/(H)05 V-U
These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
STANDARD AND APPROVAL
CEI 20-20/3, CEI 20-35, CEI 20-52, HD 21.3 S3, IEC60332
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
CABLE CONSTRUCTION
Technical Characteristics
| Solid bare copper single wire |
| Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
| H05V-U (20, 18 & 17 AWG) |
| Working voltage | 300/500v |
| Test voltage | 2000V |
| Flexing bending radius | 15 x O |
| Static bending radius | 15 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -30oC to +90oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
CABLE PARAMETER
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | kg/km | kg/km | |
| 20 | 1 x 0.5 | 0.6 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 0.6 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 0.6 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 0.7 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 0.8 | 3.5 | 24 | 33 |
| 12 | 1 x 4 | 0.8 | 3.9 | 38 | 49 |
| 10 | 1 x 6 | 0.8 | 4.5 | 58 | 69 |
| 8 | 1 x 10 | 1 | 5.7 | 96 | 115 |
