H05V-K PVC Electric Cable

H05V-K PVC Electric Cable APPLICATION AND DESCRIPTION: These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters. STANDARD AND APPROVAL: CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.3 S3 CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant Technical Characteristics: Fine bare copper strandsStrands to VDE-0295 Class-5, IEC 60228 Class-5Special PVC TI1 core insulationCores to VDE-0293 colors on chart Working voltage300/500vTest voltage2000 voltsFlexing bending radius12.5 x OStatic bending radius12.5 x OFlexing temperature-5oC to +70oCStatic temperature-30oC to +80oCFlame retardantIEC 60332.1Insulation resistance10 MΩ x km CABLE PARAMETER:H05V-K PVC Electric Cable AWGNo.…

  • Product Detail

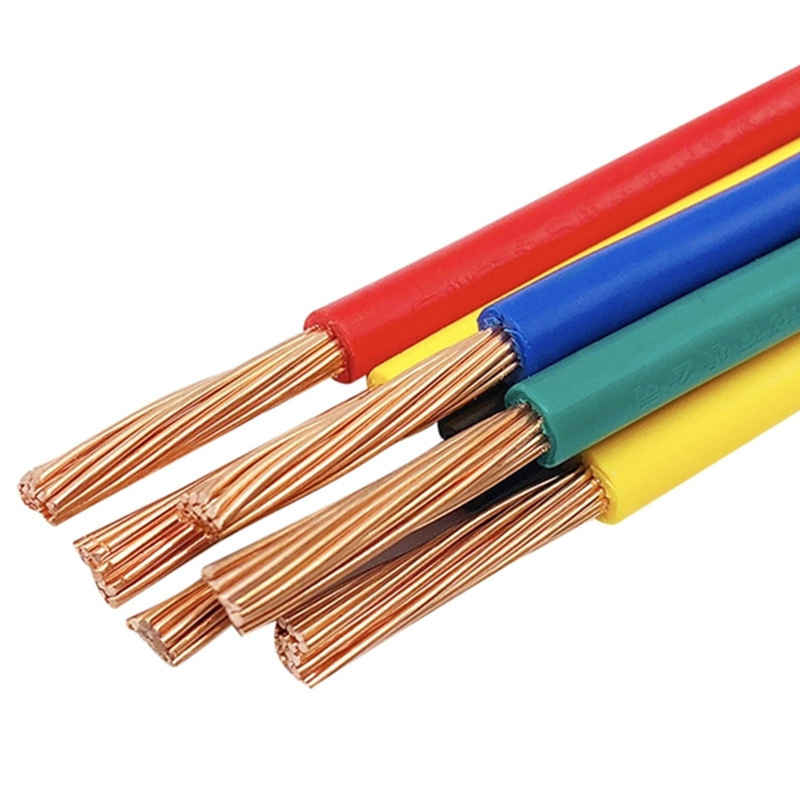

H05V-K PVC Electric Cable

APPLICATION AND DESCRIPTION:

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

STANDARD AND APPROVAL:

CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.3 S3

CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

Technical Characteristics:

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart

Working voltage300/500v
Test voltage2000 volts
Flexing bending radius12.5 x O
Static bending radius12.5 x O
Flexing temperature-5oC to +70oC
Static temperature-30oC to +80oC
Flame retardantIEC 60332.1
Insulation resistance10 MΩ x km

CABLE PARAMETER:H05V-K PVC Electric Cable

AWGNo. of Cores x Nominal Cross Sectional AreaNominal Thickness of InsulationNominal Overall DiameterNominal Copper WeightNominal Weight
# x mm^2mmmmkg/kmkg/km
20(16/32)1 x 0.50.62.14.910
18(24/32)1 x 0.750.62.47.213
17(32/32)1 x 10.62.69.615

FAQ:

1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
