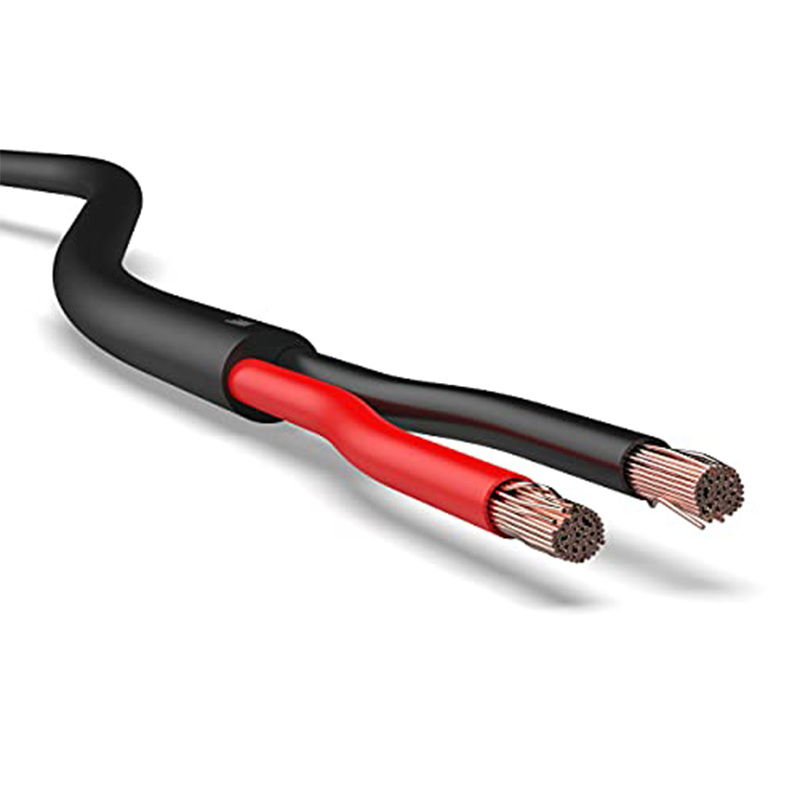

FLYY Multi-core Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated, PVC sheathed low tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.
CONSTRUCTION
Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
Insulation: PVC
Sheath: PVC
Standard: ISO 6722 Class B
TECHNICAL PARAMETERS
Operating temperature: –40°C to +105°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | Cable | ||
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical Resistance at 20°C Bare/Tinned max. | Nominal Thickness | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2x 0.50 | 16/0.21 | 1 | 37.10/38.20 | 0.5 | 1.75 | 0.5 | 4.3 | 4.7 | 31 |
| 2x 0.75 | 24/0.21 | 1.2 | 24.70/25.40 | 0.6 | 2.3 | 0.5 | 5.4 | 5.8 | 48 |
| 2x 1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.6 | 2.5 | 0.8 | 6.4 | 6.8 | 65 |
| 2x 1.50 | 30/0.26 | 1.7 | 12.70/13.00 | 0.6 | 2.75 | 0.9 | 7 | 7.5 | 83 |
| 3x 0.50 | 16/0.21 | 1 | 37.10/38.20 | 0.5 | 2.1 | 0.6 | 5.8 | 6.2 | 53 |
| 3x 0.75 | 24/0.21 | 1.2 | 24.70/25.40 | 0.6 | 2.3 | 0.6 | 5.7 | 6.3 | 60 |
| 3x 1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.6 | 2.5 | 0.9 | 6.9 | 7.5 | 81 |
| 3x 1.50 | 30/0.26 | 1.7 | 12.70/13.00 | 0.6 | 2.65 | 0.7 | 6.9 | 7.5 | 98 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
