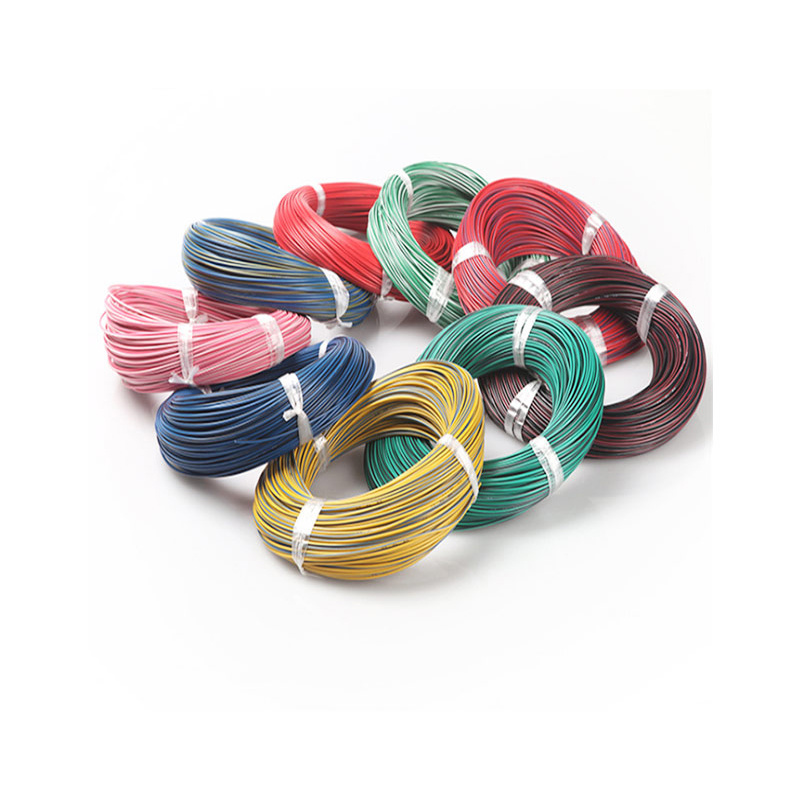

FLY Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core unshielded low-tension wire is used for automobiles.
CONSTRUCTION
Conductor : Cu-ETP1 bare according to DIN EN 13602
Insulation : PVC
Standard Compliance : ISO 6722 Class B
SPECIAL PROPERTIES
Conductors >6mm² are suitable for use as battery cables
TECHNICAL PARAMETERS
Operating temperature : –40°C to +105°C
DIMENSIONS AND WEIGHT
| Conductor | Conductor | Conductor | Insulation | Cable | Cable | Cable | |
| Nominal Cross-section | No.andDia.of Wires | Diameter max. | Electrical Resistance at 20°C max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1×0.50 | 16 /0.21 | 1 | 37.1 | 0.48 | 2 | 2.3 | 8 |
| 1×0.75 | 24/0.21 | 1.2 | 24.7 | 0.48 | 2.2 | 2.5 | 12 |
| 1×1.00 | 32/0.21 | 1.35 | 18.5 | 0.48 | 2.4 | 2.7 | 15 |
| 1×1.50 | 30/0.26 | 1.7 | 12.7 | 0.48 | 2.7 | 3 | 20 |
| 1×2.00 | 40/0.26 | 2 | 9.42 | 0.6 | 2.9 | 3.2 | 26 |
| 1×2.50 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.3 | 3.7 | 32 |
| 1×3.00 | 60/0.26 | 2.5 | 6 | 0.7 | 3.5 | 3.9 | 37 |
| 1×4.00 | 56/0.31 | 2.75 | 4.71 | 0.8 | 4 | 4.4 | 49 |
| 1×6.00 | 84/0.31 | 3.3 | 3.14 | 0.8 | 4.6 | 5 | 68 |
| 1×10.00 | 80 /0.41 | 4.5 | 1.82 | 0.8 | 6 | 6.5 | 117 |
| 1×16.00 | 126/0.41 | 6.3 | 1.16 | 0.8 | 7.5 | 8.3 | 193 |
| 1×25.00 | 196/0.41 | 7.8 | 0.74 | 1.04 | 9.5 | 10.4 | 274 |
| 1×35.00 | 276/0.41 | 9 | 0.53 | 1.04 | 10.6 | 11.6 | 397 |
| 1×50.00 | 400/0.41 | 10.5 | 0.37 | 1.2 | 12.9 | 13.5 | 547 |
| 1×70.00 | 555/0.41 | 12.5 | 0.26 | 1.2 | 14.8 | 15.5 | 769 |
| 1×95.00 | 740/0.41 | 14.8 | 0.2 | 1.28 | 17 | 18 | 990 |
| 1×120.00 | 960/0.41 | 16.5 | 0.15 | 1.6 | 18.7 | 19.7 | 1250 |
Note : Other configurations, sizes, colors and length not specified herein are available upon request.
