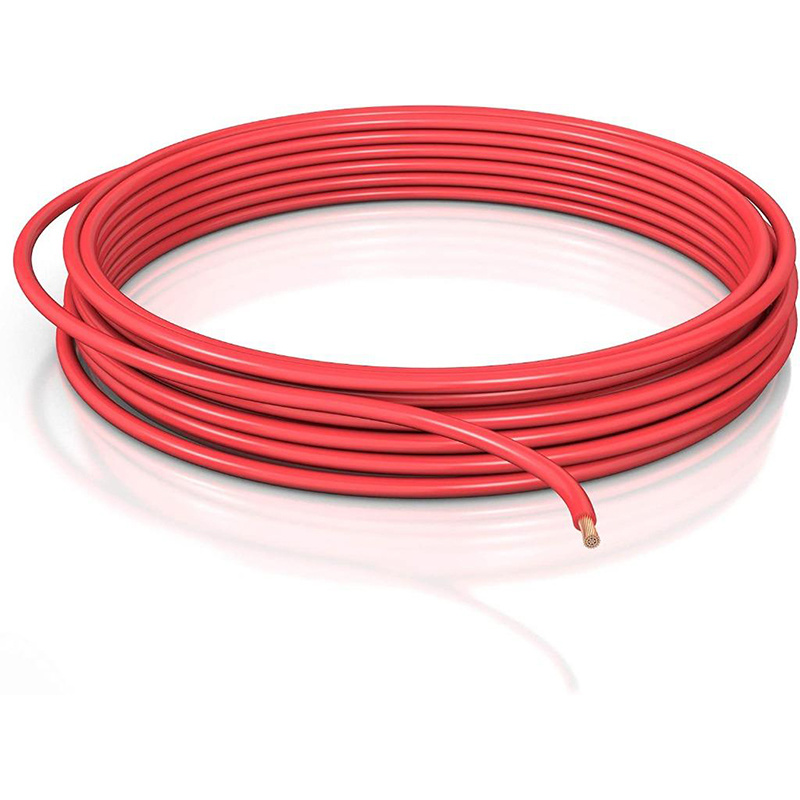

FLRY-B Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition
Conductor: Cu-ETP1 bare or tinned according to DIN EN13602
Insulation: PVC
Standard Compliance: ISO 6722 Class B
TECHNICAL PARAMETERS
Operating temperature: –40°C to 105°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | |
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Resistance at 20°C Bare/Tinned max. | Thickness Wall min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km |
| 1×0.35 | 12/0.21 | 0.9 | 52.00/5.50 | 0.2 | 1.4 | 5 |
| 1×0.50 | 16/0.21 | 1 | 37.10/38.20 | 0.22 | 1.6 | 7 |
| 1×0.75 | 24/0.21 | 1.2 | 24.70/25.40 | 0.24 | 1.9 | 9 |
| 1×1.00 | 32/0.21 | 1.35 | 18.50/19.10 | 0.24 | 2.1 | 11 |
| 1×1.50 | 30/0.26 | 1.7 | 12.70/13.00 | 0.24 | 2.4 | 16 |
| 1×2.00 | 30/0.31 | 1.9 | 9.31/9.59 | 0.24 | 2.6 | 22 |
| 1×2.50 | 50/0.26 | 2.2 | 7.60/7.80 | 0.28 | 3 | 26 |
| 1×3.00 | 45/0.31 | 2.4 | 6.21/6.40 | 0.28 | 3.2 | 33 |
| 1×4.00 | 56/0.31 | 2.75 | 4.70/4.80 | 0.32 | 3.7 | 42 |
| 1×6.00 | 84/0.31 | 3.3 | 3.10/3.20 | 0.32 | 4.3 | 61 |
| 1×10.00 | 80/0.41 | 4.5 | 1.82/1.85 | 0.48 | 6 | 108 |
| 1×16.00 | 126/0.41 | 6.3 | 1.16/1.18 | 0.52 | 7.9 | 170 |
| 1×25.00 | 196/0.41 | 7.8 | 0.743/0.757 | 0.52 | 9.4 | 265 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
