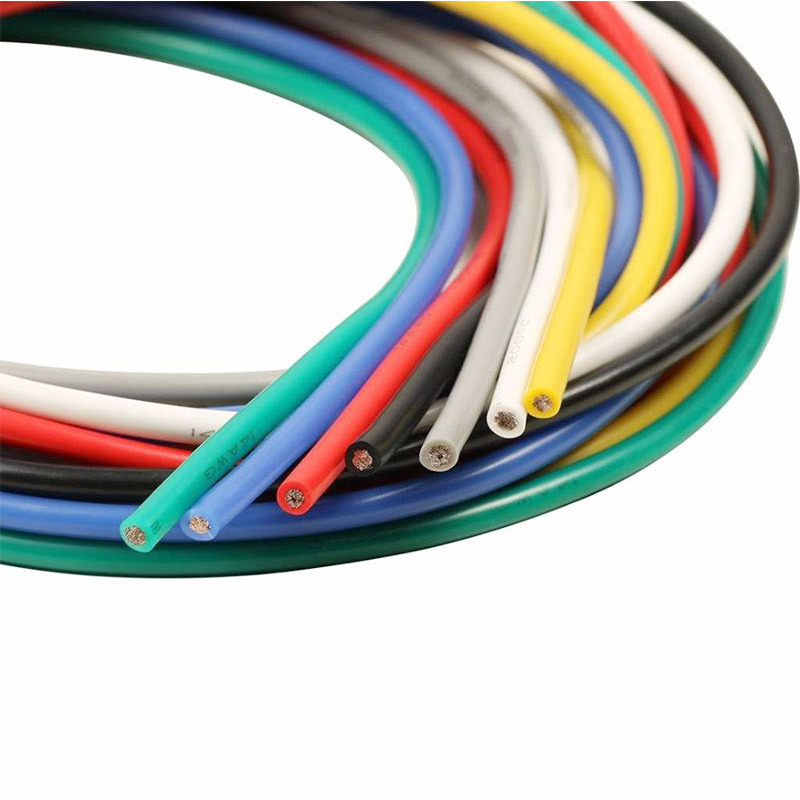

FLRY-A Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.
CONSTRUCTION
Conductor: Cu-ETP1 bare or tinned copper according to DIN EN13602
Insulation: PVC
Standard Compliance: ISO 6722 Class B
TECHNICAL PARAMETERS
Operating temperature: –40°C to 105°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | |
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Resistance at 20°C Bare/Tinned max. | Thickness Wall min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km |
| 1×0.22 | 7/0.21 | 0.7 | 84.80/86.50 | 0.2 | 1.2 | 3 |
| 1×0.35 | 7/0.26 | 0.8 | 52.00/54.50 | 0.2 | 1.3 | 5 |
| 1×0.50 | 19/0.19 | 1 | 37.10/38.20 | 0.22 | 1.6 | 7 |
| 1×0.75 | 19/0.23 | 1.2 | 24.70/25.40 | 0.24 | 1.9 | 9 |
| 1×1.00 | 19/0.26 | 1.35 | 18.50/19.10 | 0.24 | 2.1 | 11 |
| 1×1.50 | 19/0.32 | 1.7 | 12.70/13.00 | 0.24 | 2.4 | 16 |
| 1×2.00 | 19/0.37 | 2 | 9.42/9.69 | 0.24 | 2.6 | 23 |
| 1×2.50 | 19/0.41 | 2.2 | 7.60/7.80 | 0.28 | 3 | 26 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
