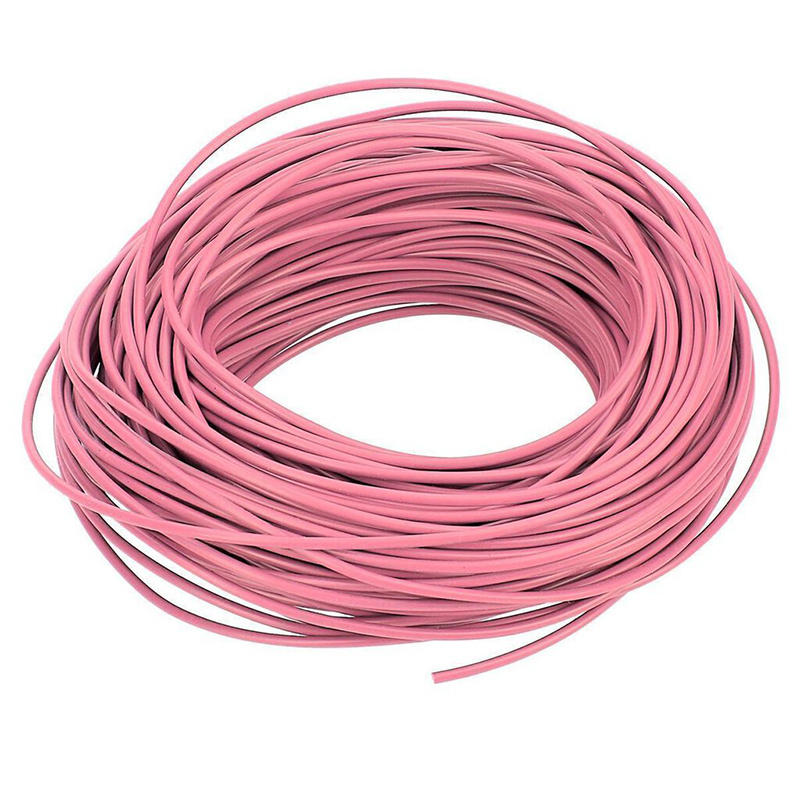

FLR6Y-B Automotive Cable
APPLICATION AND DESCRIPTION
This FEP insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.
CONSTRUCTION
Conductor: Cu-ETP1 bare/tinned according to DIN EN 13602
Insulation: FEP
Standard Compliance: ISO 6722 Class F
SPECIAL PROPERTIES:
Good thermal properties
TECHNICAL PARAMETERS
Operating temperature: –65°C to +210°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | |
| Nominal cross- section | No. and Dia. of ires | Diameter of Conductor max. | Electrical Resistance at 20°C Bare/Tinned max. | Nominal Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km | |
| 1x 0.35 | 12/0.21 | 0.9 | 54.4/55.5 | 0.2 | 1.2 | 1.4 | 5 |
| 1x 0.5 | 16/0.21 | 1 | 37.1/38.2 | 0.22 | 1.4 | 1.6 | 6 |
| 1x 0.75 | 24/0.21 | 1.2 | 24.7/24.4 | 0.24 | 1.7 | 1.9 | 9 |
| 1×1 | 32/0.21 | 1.35 | 18.5/19.1 | 0.24 | 1.9 | 2.1 | 12 |
| 1x 1.5 | 30/0.26 | 1.7 | 12.7/13.0 | 0.24 | 2.2 | 2.4 | 17 |
| 1x 2.5 | 50/0.26 | 2.2 | 7.6/7.82 | 0.28 | 2.7 | 3 | 28 |
| 1×4 | 56/0.31 | 2.75 | 4.71/4.85 | 0.32 | 3.4 | 3.7 | 41 |
| 1×6 | 81/0.31 | 3.3 | 3.14/3.14 | 0.32 | 4 | 4.3 | 62 |
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
