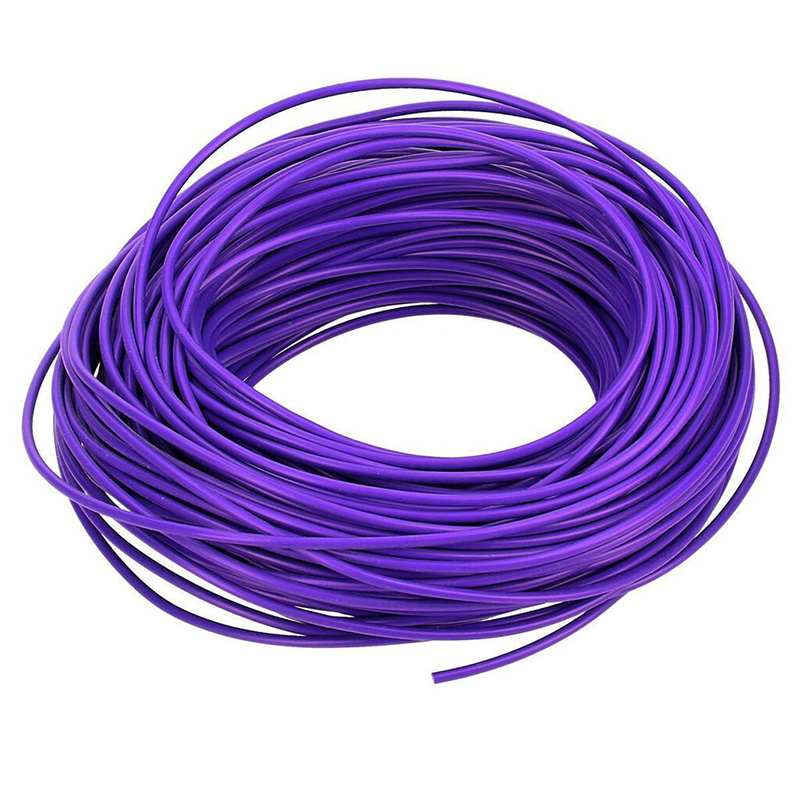

FLR6Y-A Automotive Cable
APPLICATION AND DESCRIPTION
This FEP insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.
CONSTRUCTION
Conductor: Cu-ETP1 bare/tinned according to DIN EN 13602
Insulation: FEP
Standard Compliance: ISO 6722 Class F
SPECIAL PROPERTIES:
Good thermal properties
TECHNICAL PARAMETERS
Operating temperature: –65°C to +210°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | |
| Nominal cross- section | No. and Dia. of ires | Diameter of Conductor max. | Electrical Resistance at 20°C Bare/Tinned max. | Nominal Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | kg/km | |
| 1x 0.35 | 7/0.26 | 0.8 | 54.4/55.5 | 0.2 | 1.2 | 1.3 | 4 |
| 1x 0.5 | 19/0.19 | 1 | 37.1/38.2 | 0.22 | 1.4 | 1.6 | 7 |
| 1x 0.75 | 19/0.23 | 1.2 | 24.7/25.4 | 0.24 | 1.7 | 1.9 | 9 |
| 1×1 | 19/0.26 | 1.35 | 18.5/19.1 | 0.24 | 1.9 | 2.1 | 12 |
| 1x 1.5 | 19/0.32 | 1.7 | 12.7/13.0 | 0.24 | 2.2 | 2.4 | 17 |
| 1x 2.5 | 19/0.41 | 2.2 | 7.6/7.82 | 0.28 | 2.7 | 3 | 27 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
