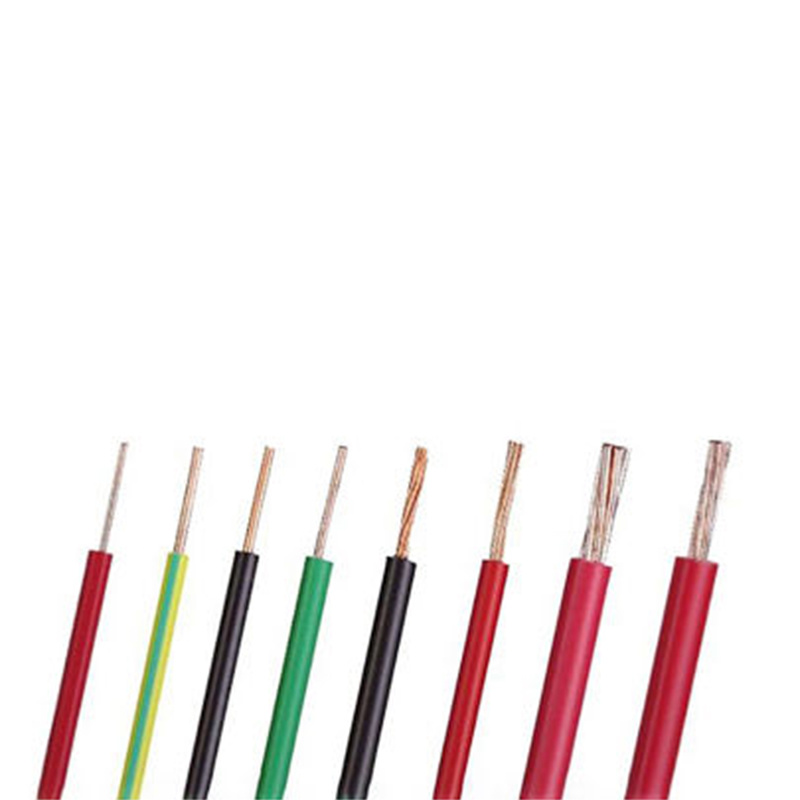

FLYY Single-Core Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.
CONSTRUCTION
Conductor : Cu-ETP1 bare according to DIN EN 13602
Insulation : PVC
Sheath : PVC
Standard Compliance : ISO 6722 Class B
TECHNICAL PARAMETERS
Operating temperature : –40°C to +105°C
DIMENSIONS AND WEIGHT
| Conductor | Conductor | Conductor | Insulation | Cable | Cable | Cable | Cable | ||
| Nominal Cross-section | No.and Dia.of Wires | Diameter max. | Electrical Resistance at 20°C max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm² | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 1×0.50 | 16/0.21 | 1 | 37.1 | 0.6 | 2.1 | 0.4 | 2.7 | 3.1 | 14 |
| 1×0.75 | 24/0.21 | 1.2 | 24.7 | 0.6 | 2.3 | 0.4 | 3 | 3.3 | 17 |
| 1×1.00 | 32/0.21 | 1.35 | 18.5 | 0.6 | 2.5 | 0.4 | 3.2 | 3.6 | 20 |
| 1×1.50 | 30/0.26 | 1.7 | 12.7 | 0.6 | 2.8 | 0.5 | 3.7 | 4.1 | 28 |
| 1×2.00 | 40/0.26 | 2 | 9.42 | 0.6 | 3 | 0.5 | 3.9 | 4.3 | 33 |
| 1×2.50 | 50/0.26 | 2.2 | 7.6 | 0.7 | 3.5 | 0.5 | 4.3 | 4.8 | 41 |
Note : Other configurations, sizes, colors and length not specified herein are available upon request.
FAQ:
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
