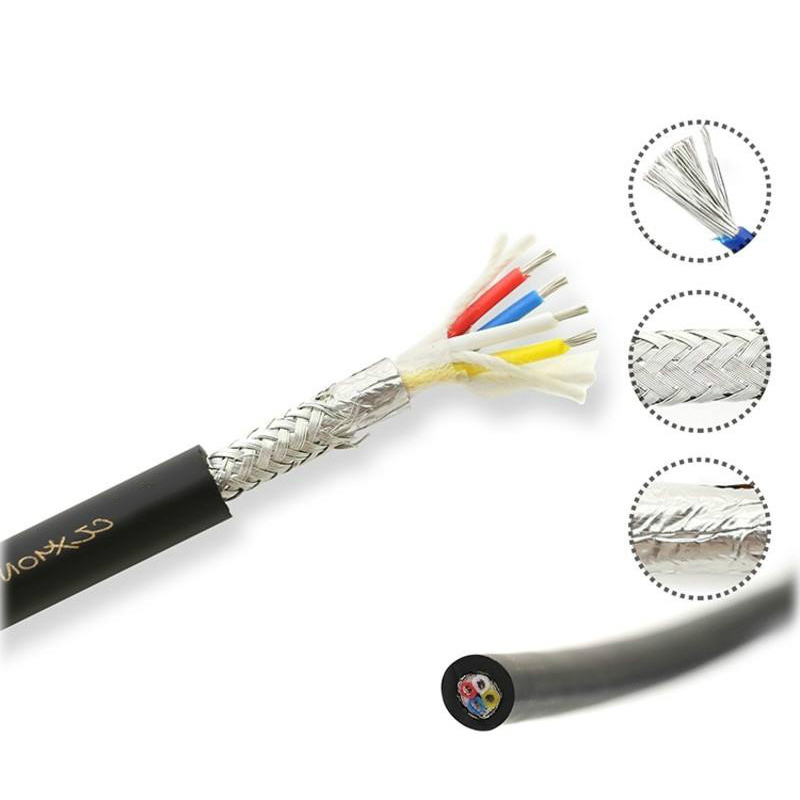

Double Shield Microphone Cable

soft structure, PV insulation, Aluminum foil shield, Braid shield, double shield, soft and elastic PVC insulated jacket

Explanation

1、The cables have stranded 4N oxygen-free copper as the core conductor, which resists oxidation, ensures high transmission rate

and low attenuation.

2.Spiral shield and aluminum foil plus braid shield constitute its double layer shield which has a shield density of 98% so as to effectively obstruct the disturbances to the transmission of signals by electromagnetic waves and improve sound clarity.

Picture	Section	Specification n/Φ mm	Each Crossec  Area Φ mm2	Conductor’s Max DC Resistance at 20℃ Ω/km	Minimum Insulating Resistance at 70℃ MΩ/km	Shield  Density %	Nom.O.D Φ mm
		4×25/0.10	0.20	92.3	0.015	>98	6.0
		4×28/0.15	0.50	39.0	0.012	>98	7.0
		2×38/0.08	0.20	92.3	0.013	>95	6.0
		2×58/0.08	0.3	69.2	0.014	>95	7.0

FAQ:

1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
