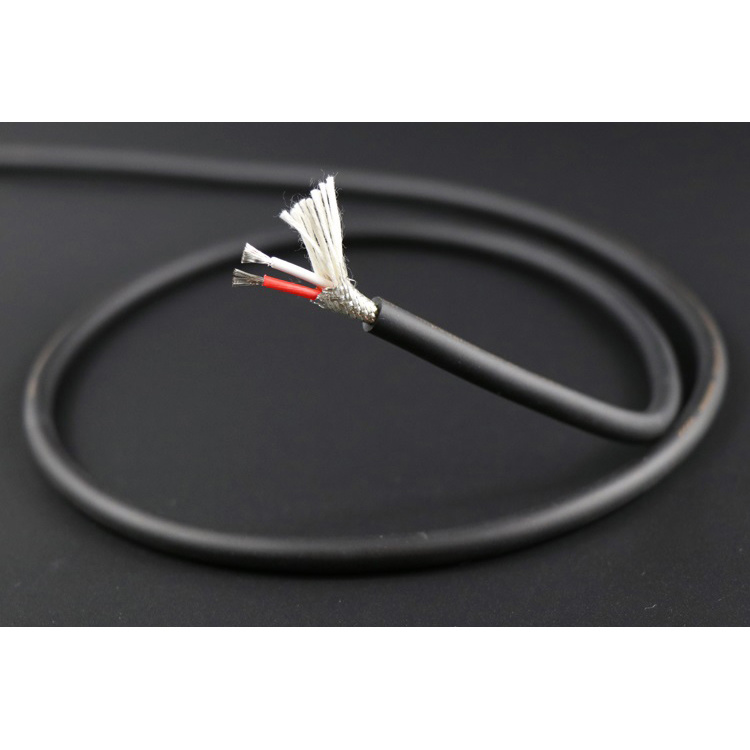

Braid Shield Microphone Cable

soft structure, PVC insulation, copper/tinned copper Braided,PVC jacket

Explanation

1、The Cable has stranded 4N ovygen-free copper wire as the core conductor, which resists oxidation, ensures high transmission rate and low attenuation.

2、Such cables can be used for the transmission of low frequency signals,when they are usually called microphone cables. The protective sheaths are made of elastic polyvinyl chloride(PVC) in bright colors which are soft, distortion endure, and hard to go brittle.

3、The four cores are arranged the way which the graph below shows, when they can be best shielded from noises. Noise calibration of suchcables is only 1/10 of that of two-core microphone cables.

Picture	Section	Specification n/Φ mm	Each Crossec Area Φ mm2	Conductor’s Max DC Resistance at 20℃ Ω/km	Minimum Insulating Resistance at 70℃ MΩ/km	Shield  Density %	Nom.O.D Φ mm
		2×16/0.10	0.12	158	0.016	>85	5.0
		2×25/0.10	0.20	92.3	0.013	>85	5.5
		2×37/0.10	0.30	69.2	0.014	>85	6.0
		2×28/0.15	0.50	39.0	0.012	>85	6.5
		4×12/0.10	0.10	195	0.017	>85	5.5
		4×25/0.10	0.20	92.3	0.013	>85	6.0
		4×16/0.15	0.30	69.2	0.014	>85	6.5
		4×28/0.15	0.50	39.0	0.012	>85	7.0

FAQ:

1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.

2.Q: Do you acceptt OEM order?
A: Yes

3.Q: Where is your factory located ?
A: we located in  Haiyan, Jiaxing, Zhejiang, next to shanghai.

4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.

5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15days
