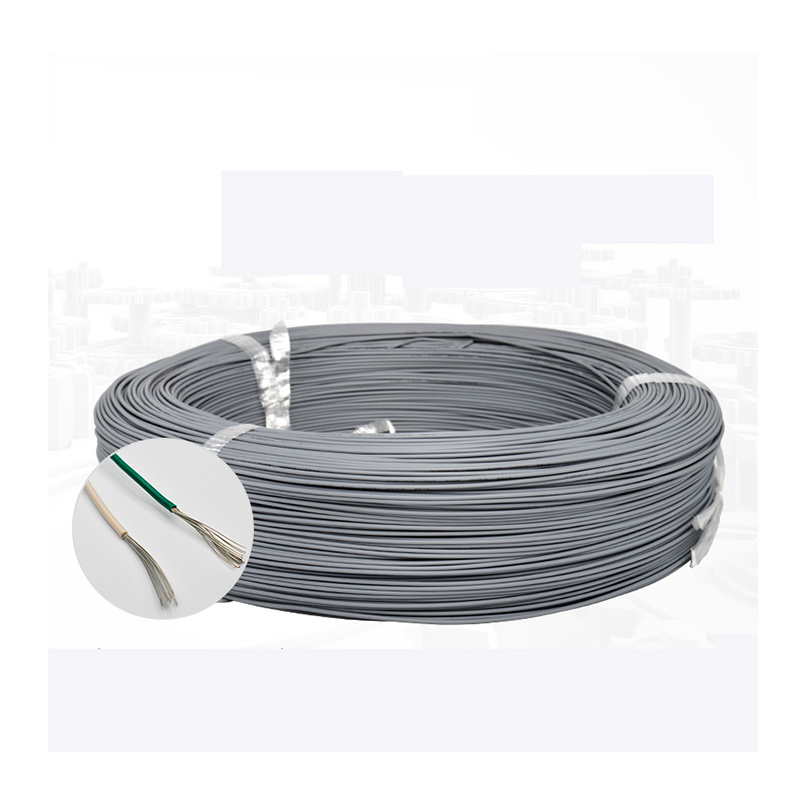

AVSS-Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and Motorcycles.
CONSTRUCTION
Conductor: Cu-ETP1 bare according to JIS 3120
Insulation: PVC
Standard Compliance: JASO D 611-94
TECHNICAL PARAMETERS
Operating temperature: –40 °C to +85 °C
Intermittent temperature: 120°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | |
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1 x 0.30 | 7/0.26 | 0.8 | 50.2 | 0.3 | 1.4 | 1.5 | 5 |
| 1 x 0.50 | 7/0.32 | 1 | 32.7 | 0.3 | 1.6 | 1.7 | 7 |
| 1 x 0.85 | 19/0.24 | 1.2 | 21.7 | 0.3 | 1.8 | 1.9 | 10 |
| 1 x 1.25 | 19/0.29 | 1.5 | 14.9 | 0.3 | 2.1 | 2.2 | 14 |
| 1 x 0.3f | 19/0.16 | 0.8 | 48.8 | 0.3 | 1.4 | 1.5 | 5 |
| 1 x 0.5f | 19/0.19 | 1 | 34.6 | 0.3 | 1.6 | 1.7 | 7 |
| 1 x 0.75f | 19/0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 | 10 |
| 1 x 1.25f | 37/0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 | 14 |
| 1 x 2f | 37/0.26 | 1.8 | 9.5 | 0.4 | 2.6 | 2.7 | 22 |
The “f” in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
