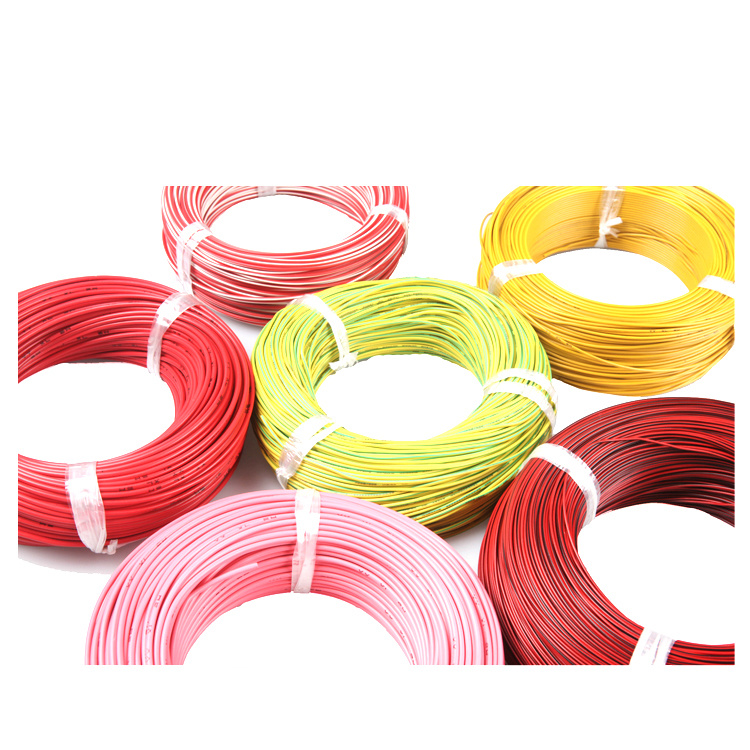

AV-Automotive Cable
APPLICATION AND DESCRIPTION
This PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.
CONSTRUCTION
Conductor: Cu-ETP1 bare according to D 609-90
Insulation: PVC
Standard Compliance: JIS C 3406
TECHNICAL PARAMETERS
Operating temperature: –40 °C to +85 °C
Intermittent temperature: 120°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | |
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1 x0.50 | 7/0.32 | 1 | 32.7 | 0.6 | 2.2 | 2.4 | 10 |
| 1 x0.85 | 11/0.32 | 1.2 | 20.8 | 0.6 | 2.4 | 2.6 | 13 |
| 1 x1.25 | 16/0.32 | 1.5 | 14.3 | 0.6 | 2.7 | 2.9 | 17 |
| 1 x2.00 | 26/0.32 | 1.9 | 8.81 | 0.6 | 3.1 | 3.4 | 26 |
| 1 x3.00 | 41/0.32 | 2.4 | 5.59 | 0.7 | 3.8 | 4.1 | 40 |
| 1 x5.00 | 65/0.32 | 3 | 3.52 | 0.8 | 4.6 | 4.9 | 62 |
| 1 x8.00 | 50/0.45 | 3.7 | 2.32 | 0.9 | 5.5 | 5.8 | 92 |
| 1 x10.00 | 63/0.45 | 4.5 | 1.84 | 1 | 6.5 | 6.9 | 120 |
| 1 x15.00 | 84/0.45 | 4.8 | 1.38 | 1.1 | 7 | 7.4 | 160 |
| 1 x20.00 | 41/0.80 | 6.1 | 0.89 | 1.1 | 8.2 | 8.8 | 226 |
| 1 x30.00 | 70/0.80 | 8 | 0.52 | 1.4 | 10.8 | 11.5 | 384 |
| 1 x40.00 | 85/0.80 | 8.6 | 0.43 | 1.4 | 11.4 | 12.1 | 462 |
| 1 x50.00 | 108/0.80 | 9.8 | 0.34 | 1.6 | 13 | 13.8 | 583 |
| 1 x60.00 | 127/0.80 | 10.4 | 0.29 | 1.6 | 13.6 | 14.4 | 678 |
| 1 x85.00 | 169/0.80 | 12 | 0.22 | 2 | 16 | 17 | 924 |
| 1 x100.00 | 217/0.80 | 13.6 | 0.17 | 2 | 17.6 | 18.6 | 1151 |
| 1 x0.5f | 20/0.18 | 1 | 36.7 | 0.6 | 2.2 | 2.4 | 9 |
| 1 x0.75f | 30/0.18 | 1.2 | 24.4 | 0.6 | 2.4 | 2.6 | 12 |
| 1 x1.25f | 50/0.18 | 1.5 | 14.7 | 0.6 | 2.7 | 2.9 | 18 |
| 1 x2f | 37/0.26 | 1.8 | 9.5 | 0.6 | 3 | 3.4 | 25 |
| 1 x3f | 61/0.26 | 2.4 | 5.76 | 0.7 | 3.8 | 4.1 | 40 |
The “f” in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
