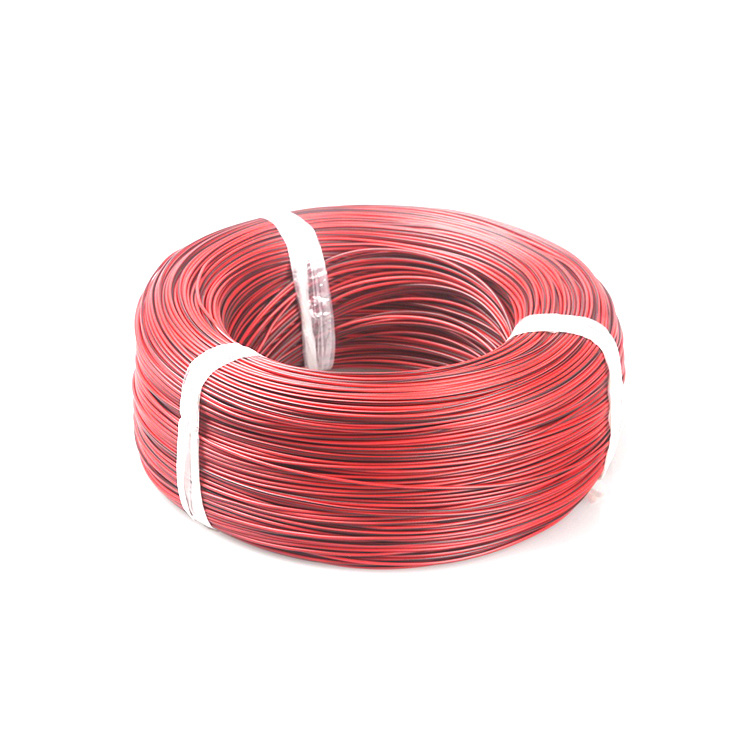

AEX AVX-Automotive Cable
APPLICATION AND DESCRIPTION
This XLPE insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.
CONSTRUCTION
Conductor: Cu-ETP1 according to JIS C3102
Insulation: XLPE (AEX)
Crosslinked PVC (AVX)
Standard Compliance: JASO D 608-92
TECHNICAL PARAMETERS
Operating temperature:–40 °C to +120 °C (AEX)
Operating temperature:–40 °C to +100 °C (AVX)
DIMENSIONS AND WEIGHT
| Conductor Construction | Conductor Construction | Conductor Construction | Insulation | Cable | Cable | Cable | |
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1 x0.50 | 7/0.32 | 1 | 32.7 | 0.5 | 2 | 2.2 | 8 |
| 1 x0.85 | 11/0.32 | 1.2 | 20.8 | 0.5 | 2.2 | 2.4 | 11 |
| 1 x1.25 | 16/0.32 | 1.5 | 14.3 | 0.6 | 2.7 | 2.9 | 16 |
| 1 x2.00 | 26/0.32 | 1.9 | 8.8 | 0.6 | 3.1 | 3.4 | 25 |
| 1 x3.00 | 41/0.32 | 2.4 | 5.6 | 0.7 | 3.8 | 4.1 | 38 |
| 1 x5.00 | 65/0.32 | 3 | 3.5 | 0.8 | 4.6 | 4.9 | 59 |
| 1 x8.00 | 50/0.45 | 3.7 | 2.3 | 0.8 | 5.3 | 5.6 | 86 |
| 1 x15.00 | 84/0.45 | 4.8 | 1.4 | 1.1 | 7 | 7.4 | 145 |
| 1 x0.50f | 20/0.18 | 1 | 36.7 | 0.5 | 2 | 2.2 | 8 |
| 1 x0.75f | 30/0.18 | 1.2 | 24.4 | 0.5 | 2.2 | 2.4 | 10 |
| 1 x 1.25f | 50/0.18 | 1.5 | 14.7 | 0.6 | 2.7 | 2.9 | 16 |
The “f” in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
